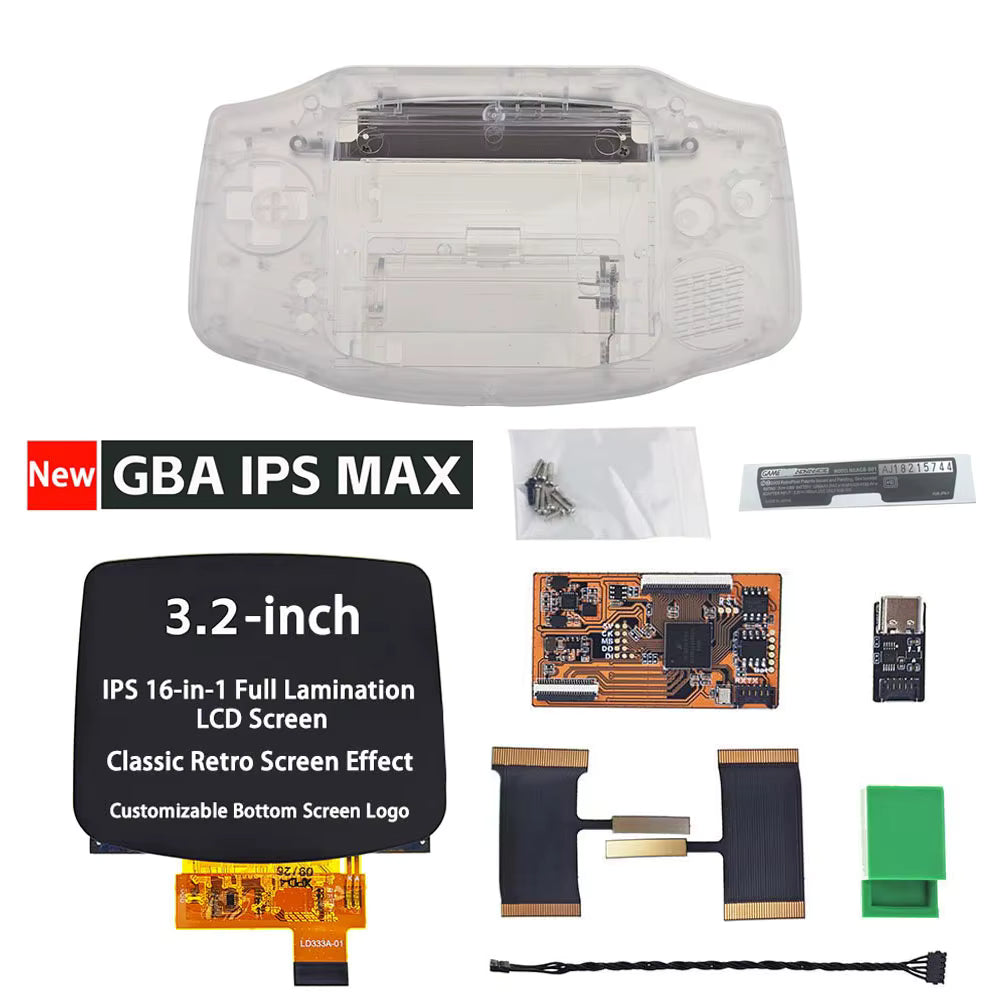

• Upgrade your Game Boy Advance with the IPS MAX 3.2" Upgrade Kit—includes a laminated screen, clear custom shell, adapter boards, ribbon cables, and accessories for the ultimate display enhancement.

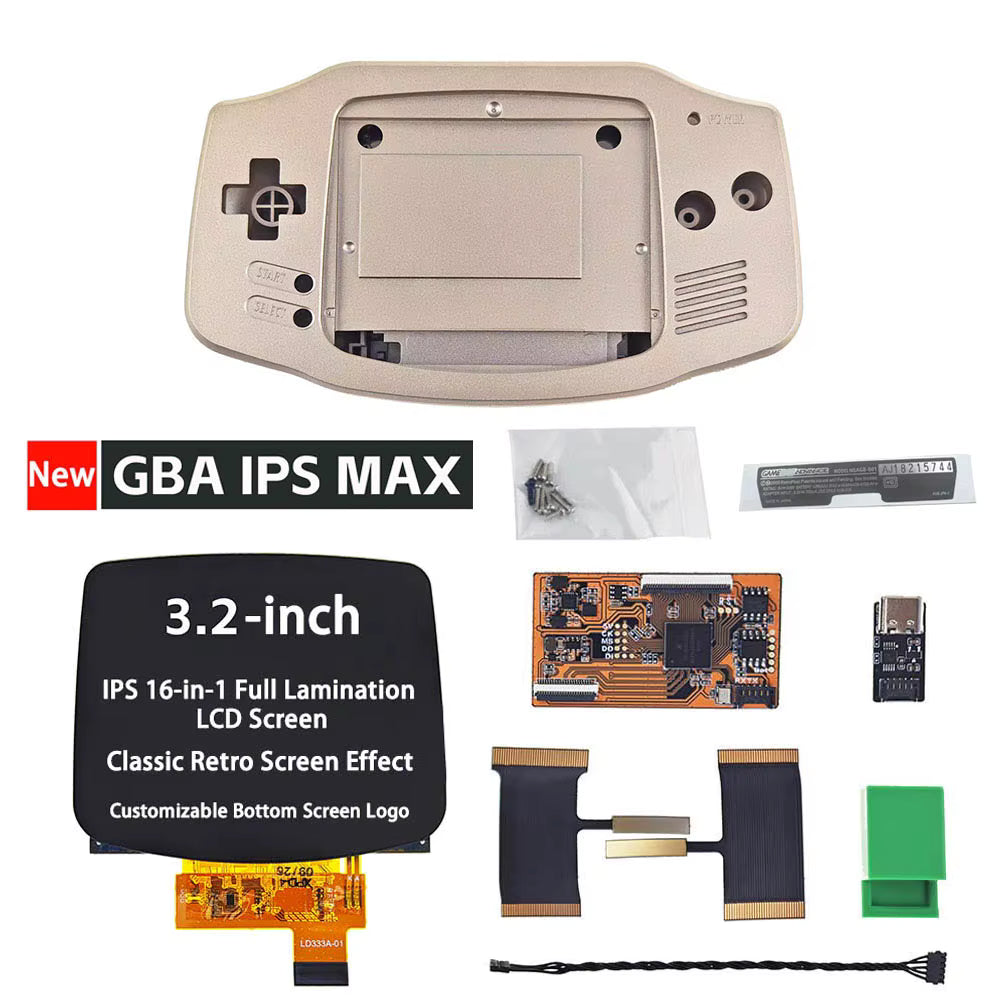

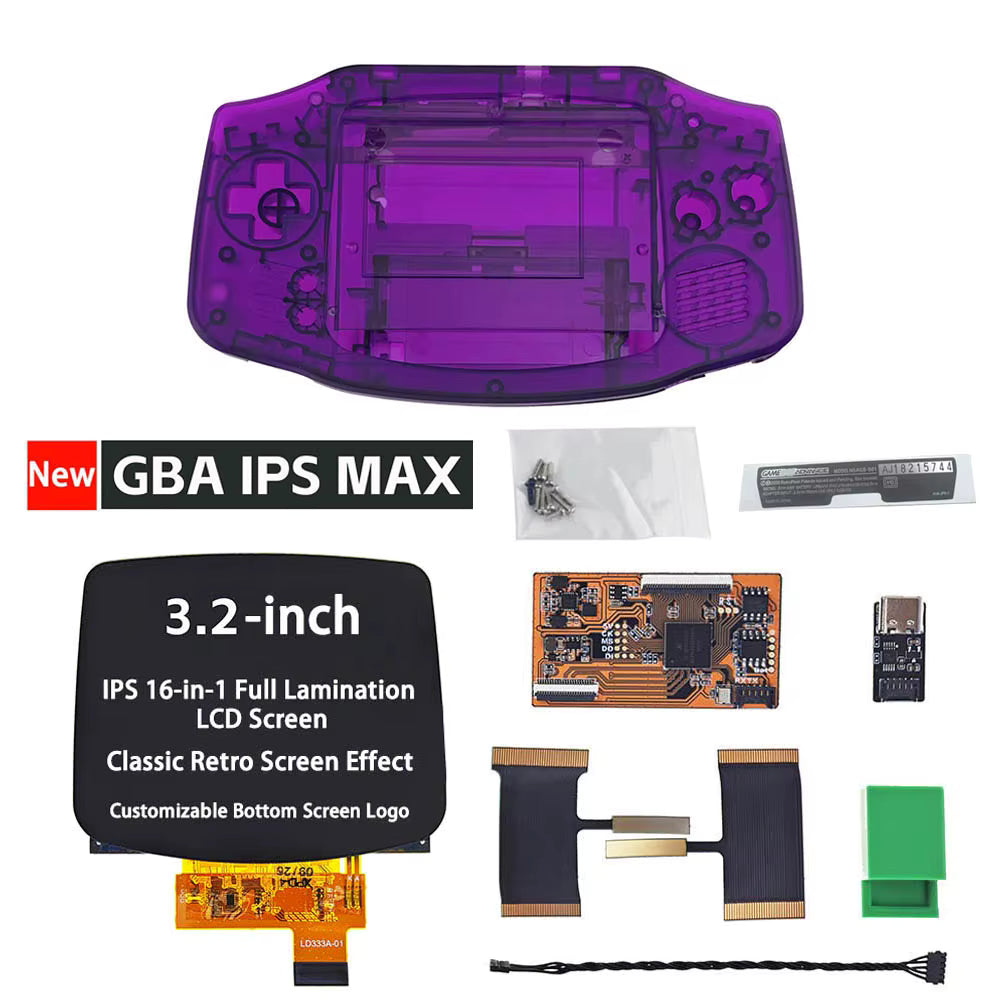

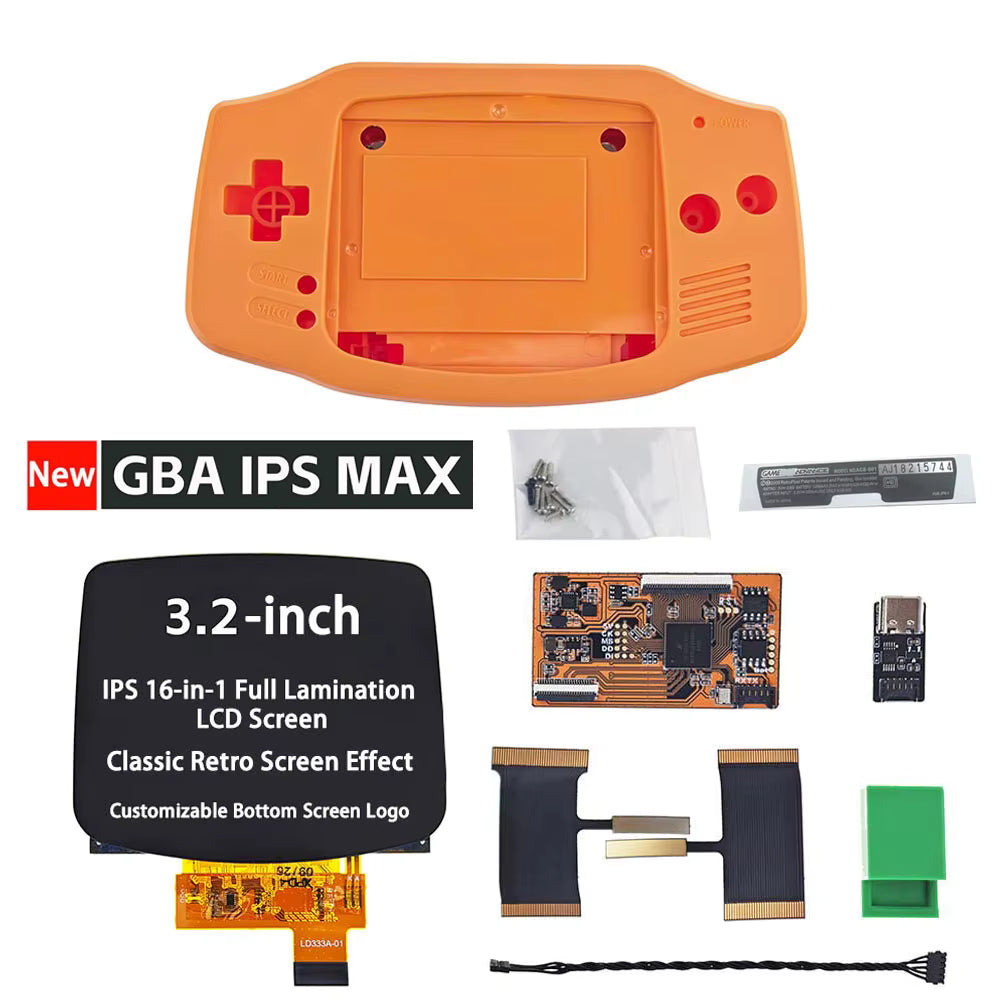

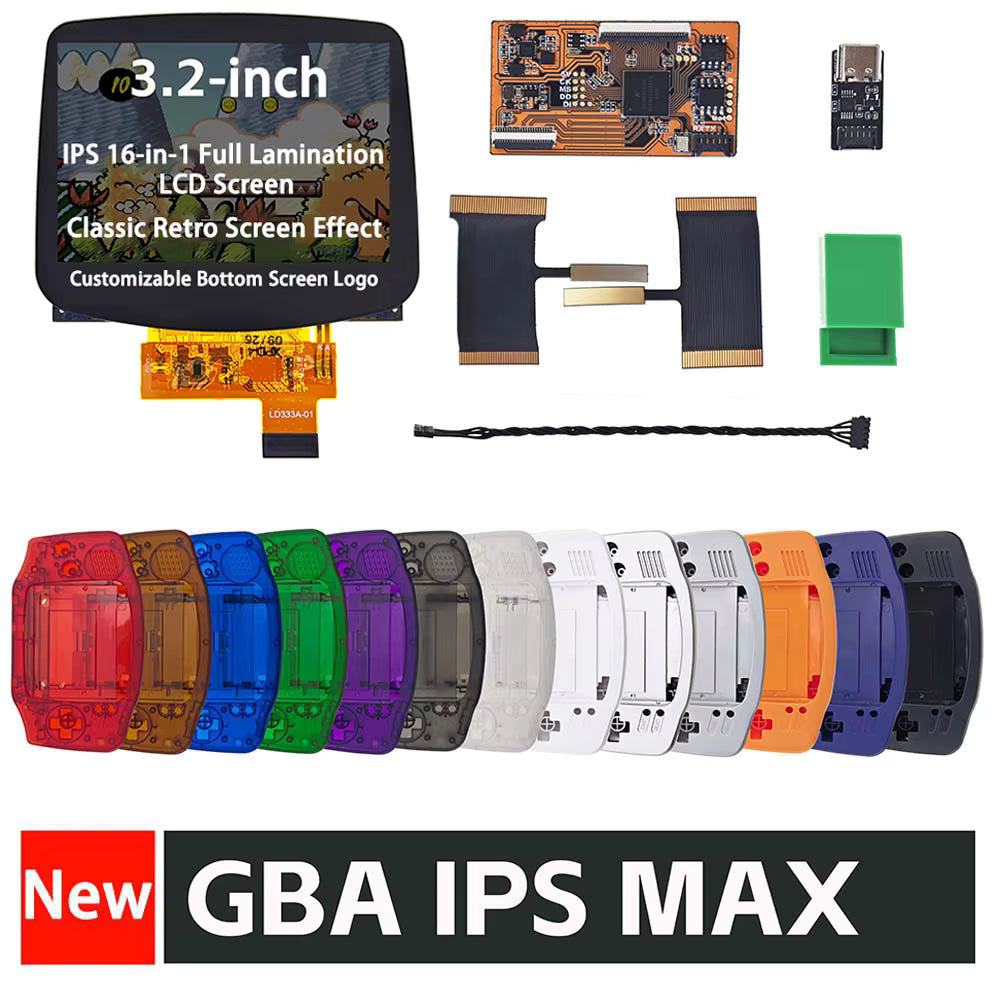

  • The Game Boy Advance IPS MAX 3.2" Upgrade Kit | Laminated Screen + Custom Shell is shown with cables, adapters, and ten colorful replacement shells—offering a premium fully laminated screen upgrade for your GBA.

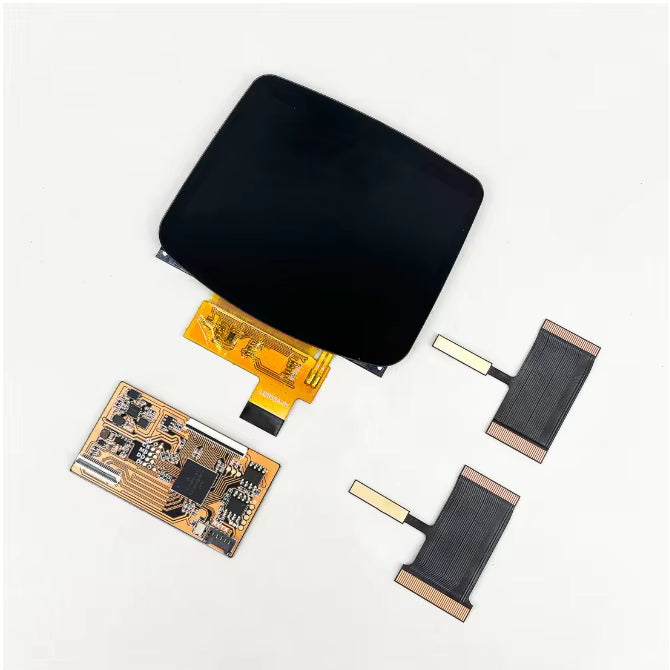

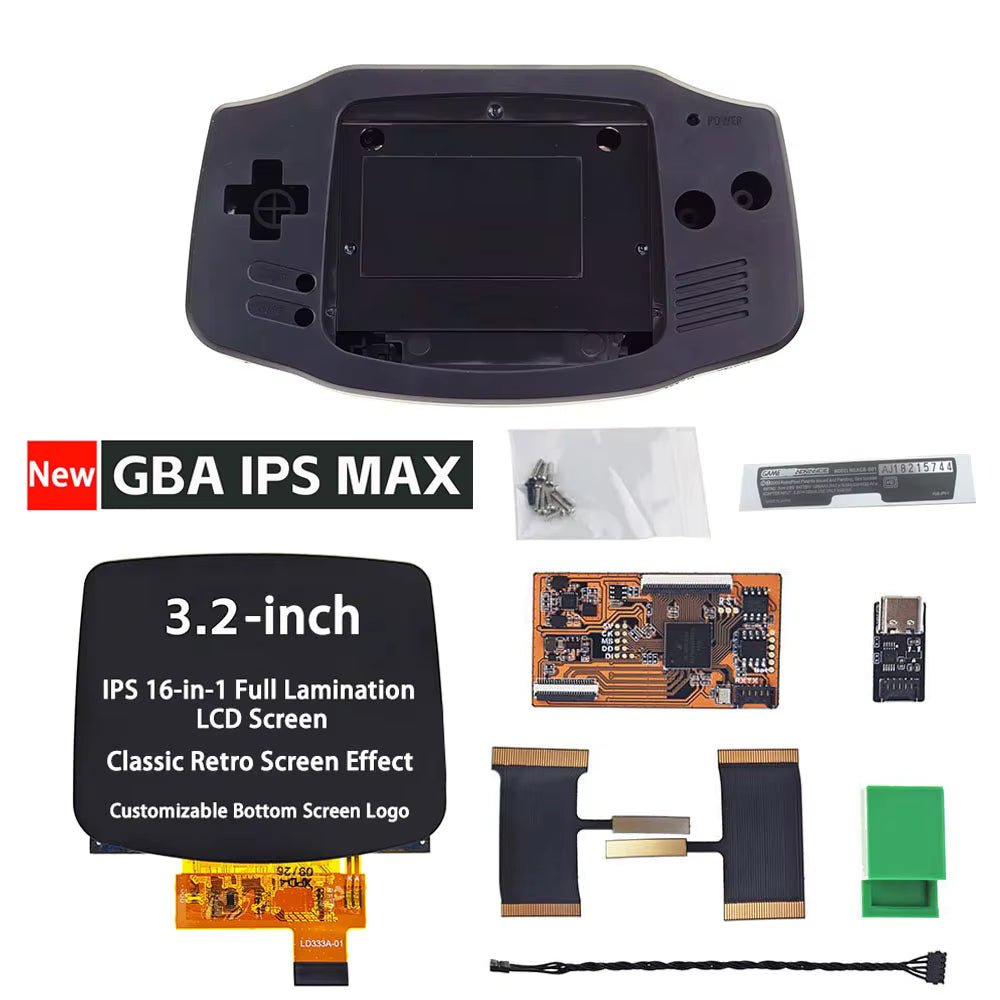

  • The Game Boy Advance IPS MAX 3.2" Upgrade Kit features a black laminated display, exposed yellow PCB, extra circuit board, and two black ribbon cables—perfect for your GBA mod or screen upgrade—all shown on a white background.

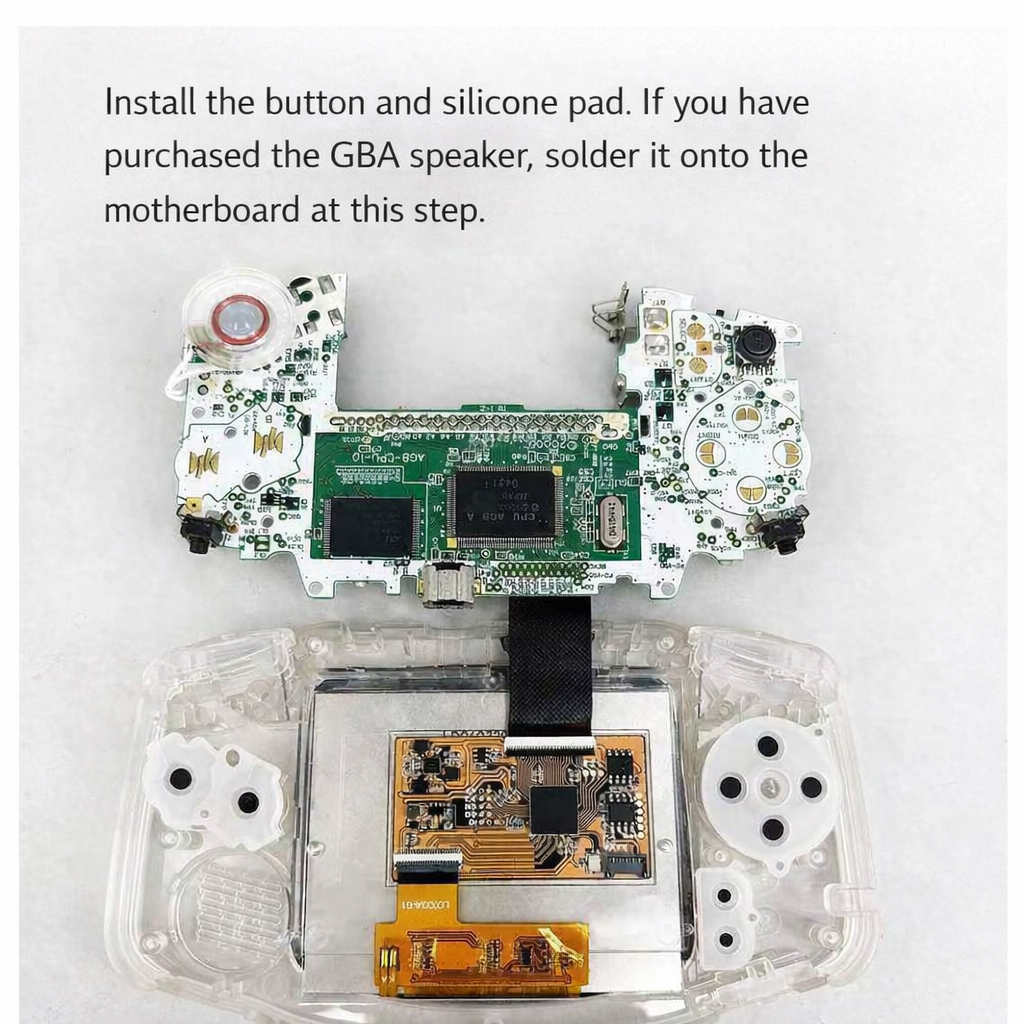

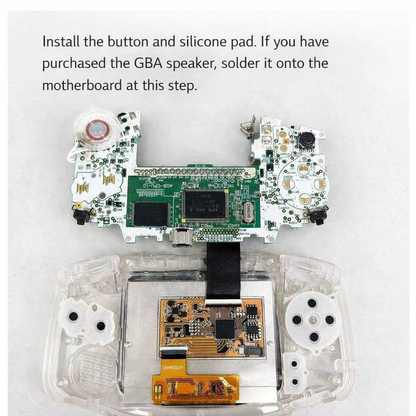

  • A Game Boy Advance IPS MAX 3.2" Upgrade Kit | Laminated Screen + Custom Shell is shown mid-assembly, exposing its circuit board, buttons, silicone pad, and custom shell. Instruction text highlights the new laminated IPS MAX display upgrade.

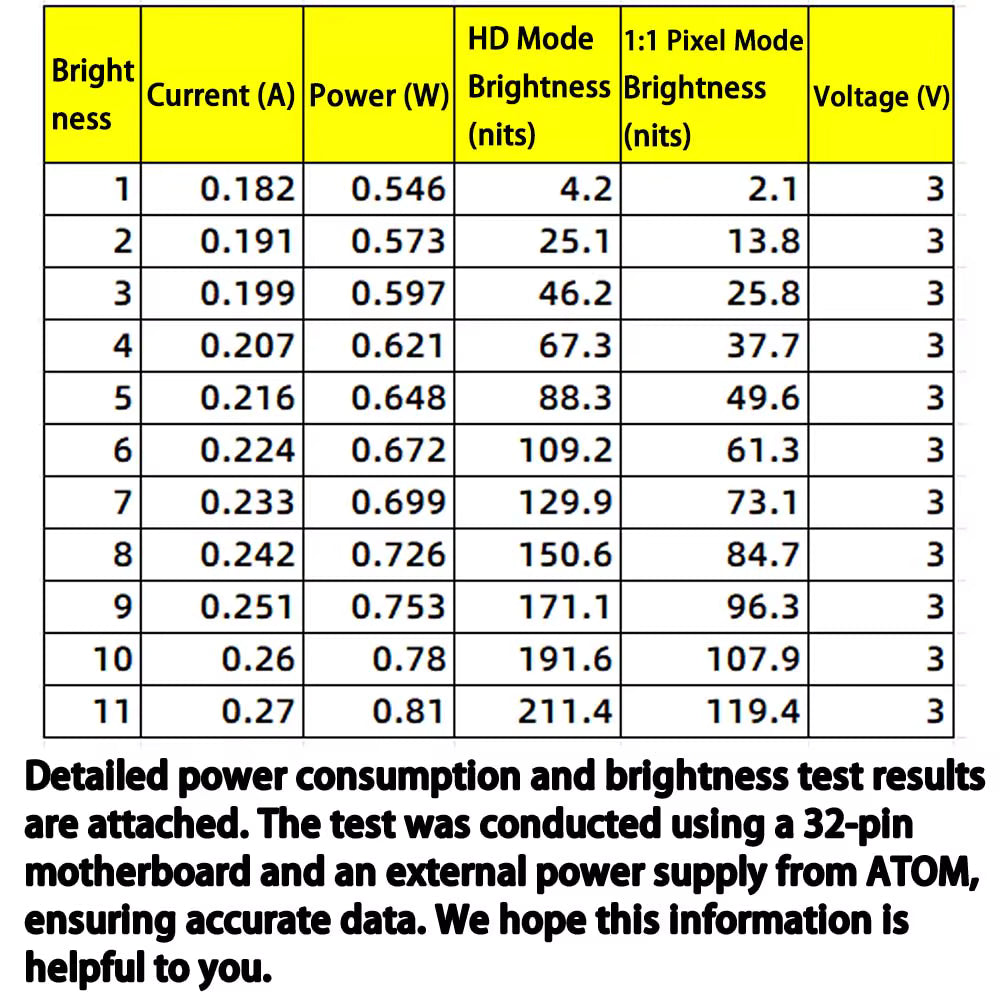

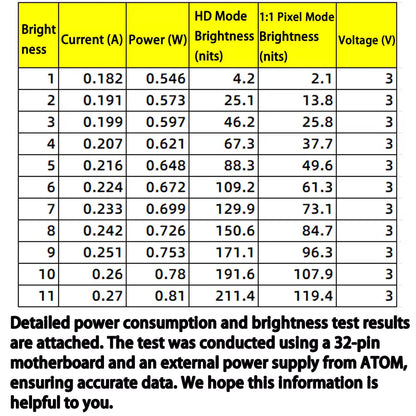

  • A chart displays brightness, current, power, HD mode brightness, 1:1 pixel mode brightness, and voltage for the Game Boy Advance IPS MAX 3.2" Upgrade Kit with Laminated Screen + Custom Shell. Testing used a 32-pin motherboard and external power supply.

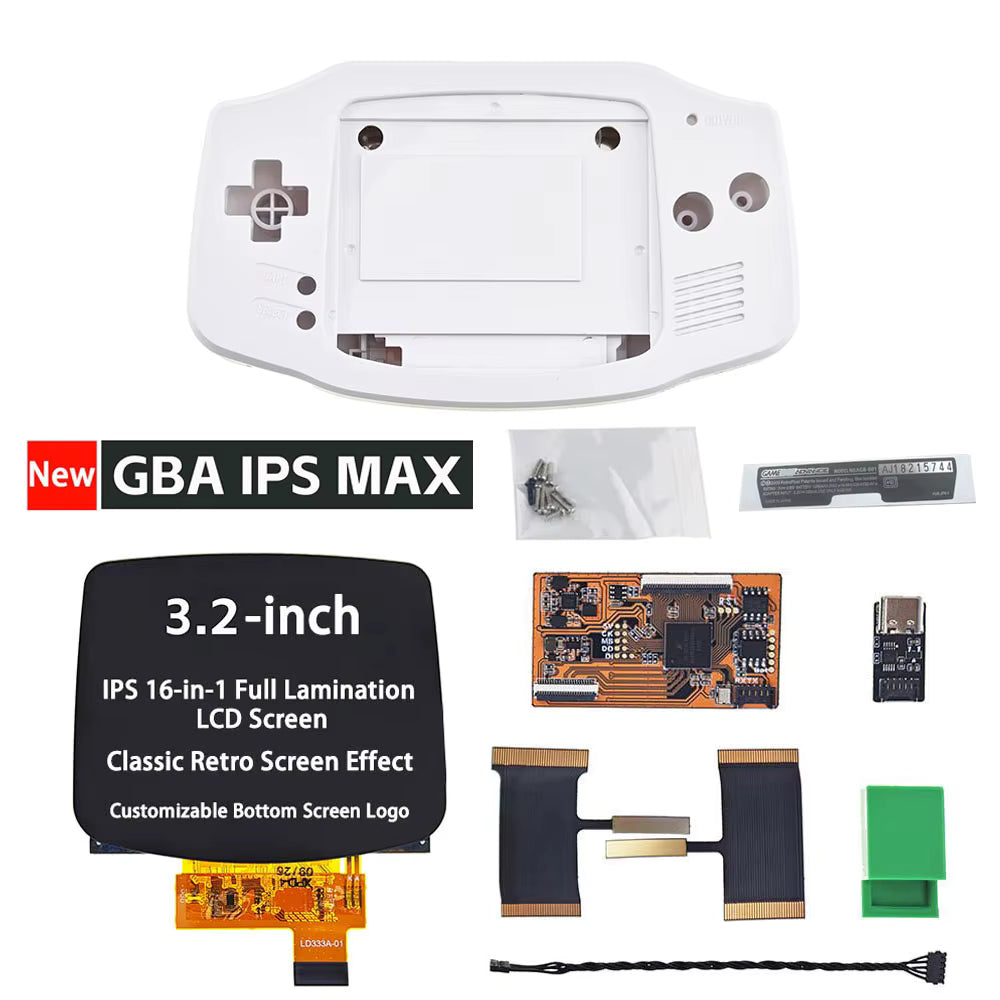

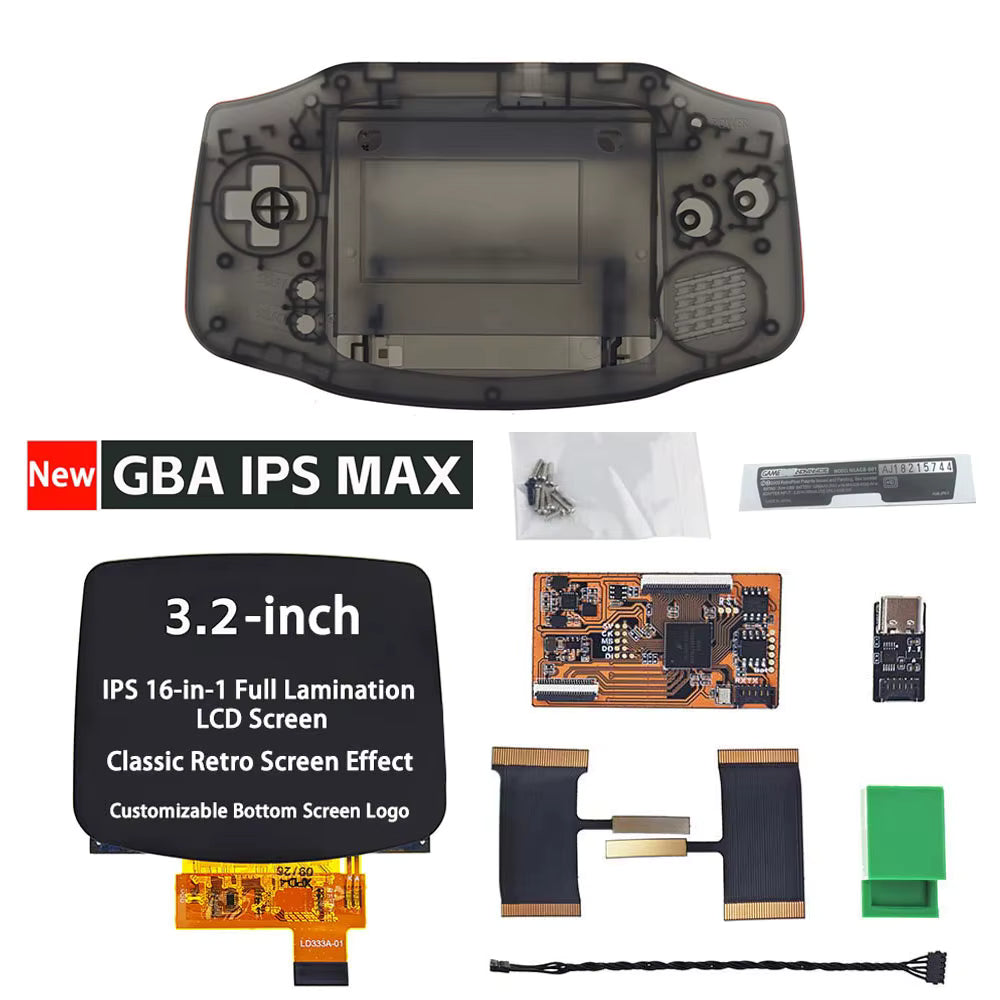

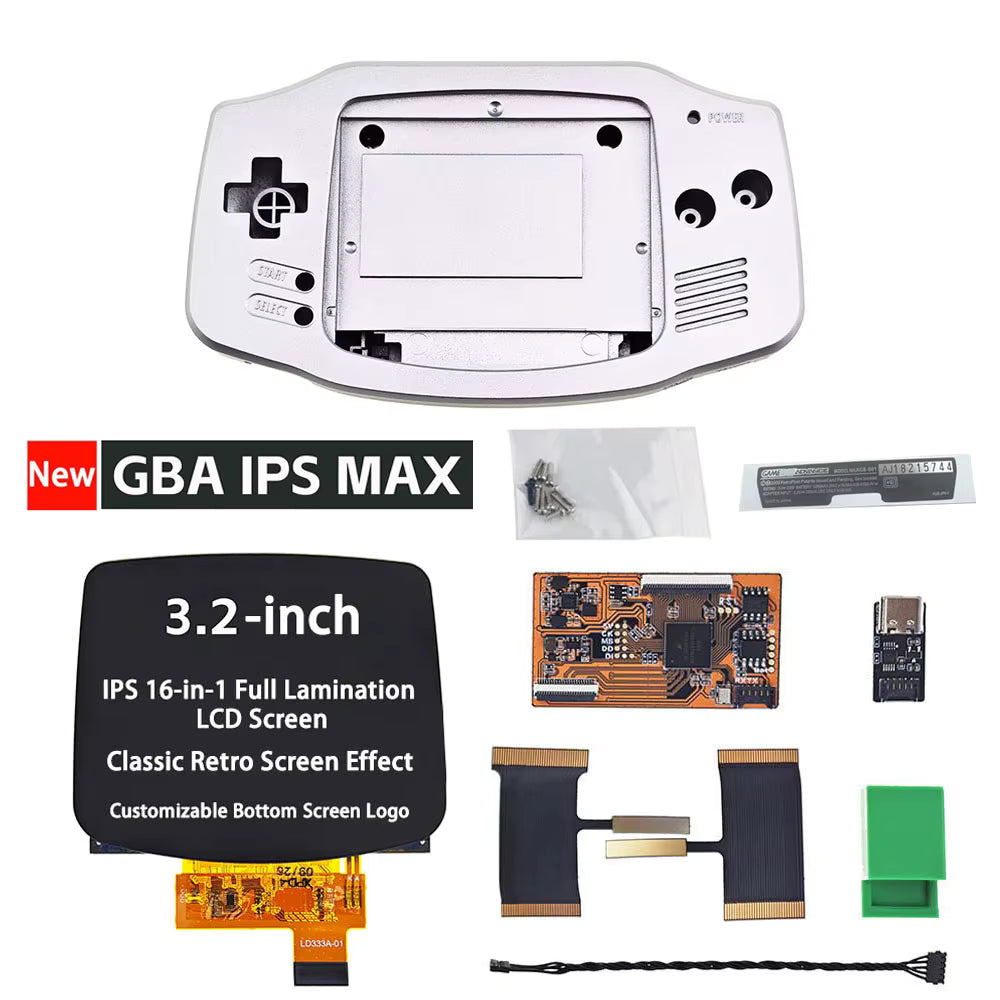

  • The Game Boy Advance IPS MAX 3.2" Upgrade Kit | Laminated Screen + Custom Shell includes a white shell, fully laminated 3.2" IPS MAX screen, boards, ribbon cables, USB connector, green tool, and screw—the ultimate GBA screen upgrade.

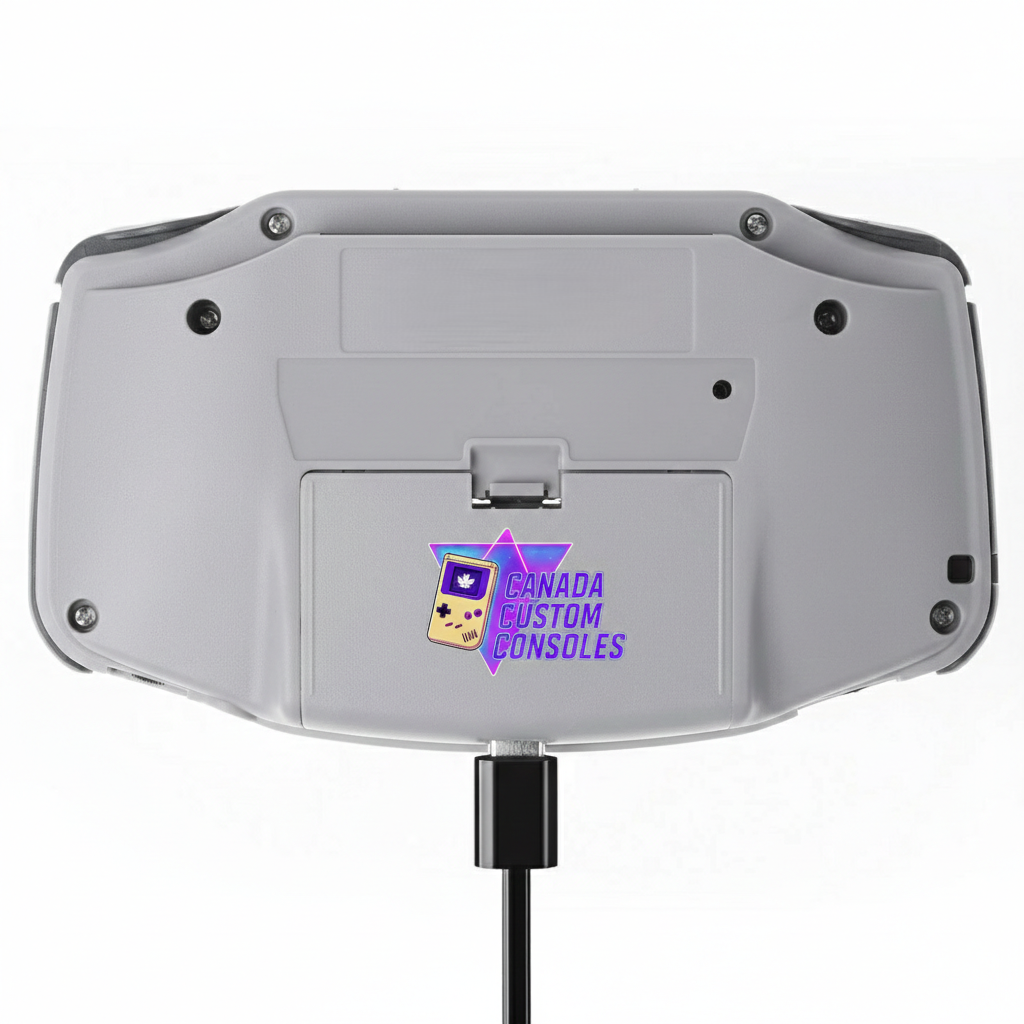

  • The back view of the Game Boy Advance – Gengar Edition | IPS 3.0 Laminated Display | Custom Build shows a gray handheld console with battery cover, connection port, and a purple Canada Custom Consoles logo featuring a game controller.

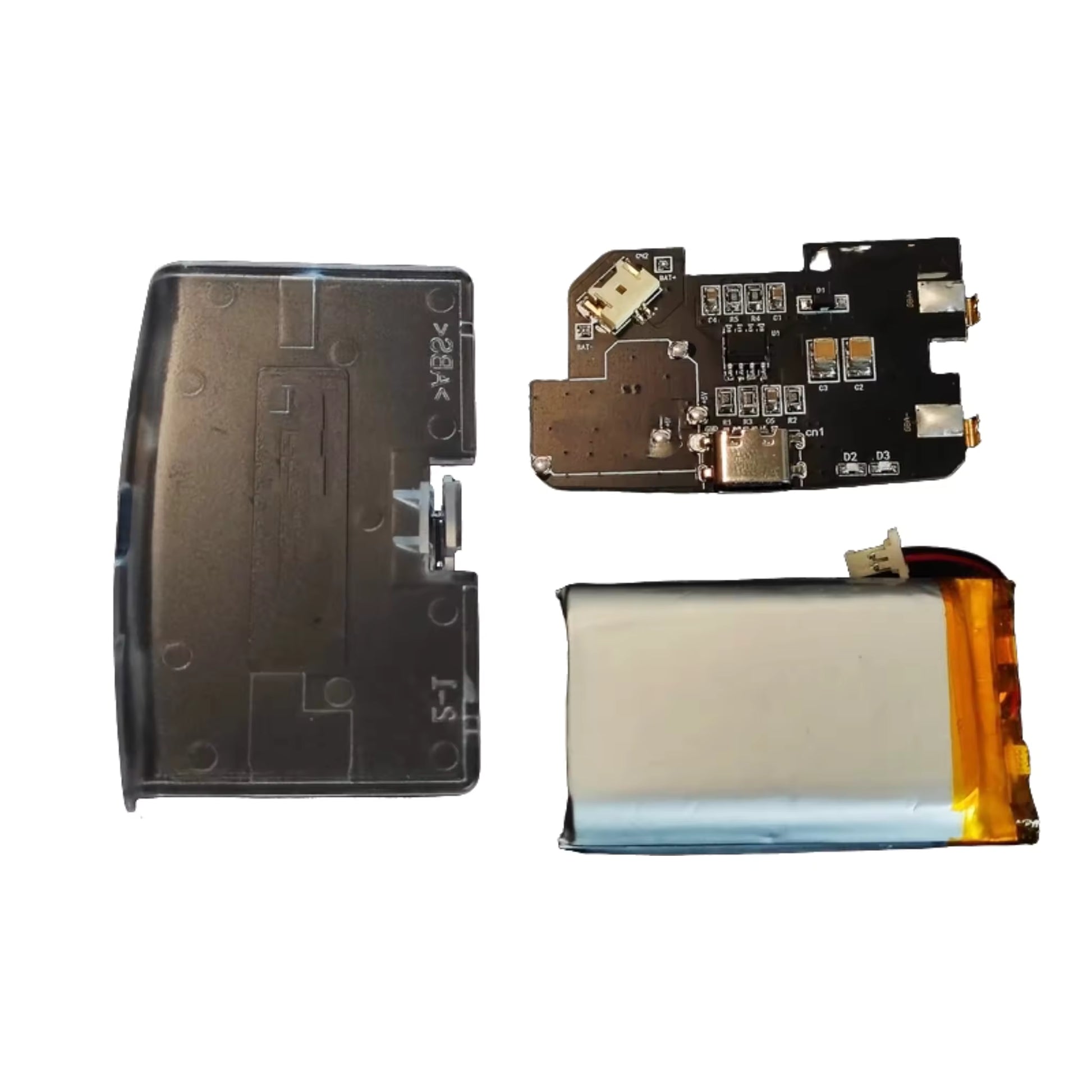

  • The Game Boy Advance – Gengar Edition | IPS 3.0 Laminated Display | Custom Build features a see-through casing inspired by the Gengar Edition, a circuit board with chips/connectors, and a silver-orange rectangular lithium polymer battery, all shown on white.
1 8

Nintendo

Game Boy Advance IPS MAX 3.2" Upgrade Kit | Laminated Screen + Custom Shell

Game Boy Advance IPS MAX 3.2" Upgrade Kit | Laminated Screen + Custom Shell

$109.99 CAD
$109.99 CAD
Sale Sold out
Rechargeable Lithium Battery
Color: Clear

Take your Game Boy Advance mod to the next level with this IPS MAX 3.2" fully laminated screen kit. Featuring a larger display, stunning 960x640 resolution, and a dedicated logo zone — this is one of the most feature-packed GBA screen upgrades available. Includes a custom shell designed specifically for this module.

Perfect for experienced modders looking for a premium, customizable build.

🖥️ Display

  • 3.2" IPS MAX panel — larger than the standard GBA screen
  • Full lamination — eliminates glare and dust between the lens and display
  • 960x640 resolution — crisp, vibrant visuals with deep colours
  • Customizable logo zone — 960x80 pixel area at the bottom for your own logo
  • Upload custom 4-colour BMP images via USB-C and Windows software

🎮 Enhanced Gaming Modes

  • GBC Zoom (x5) — play Game Boy Color games with a massively enlarged display
  • AGS-101 Colour Mode — switch to classic colour tones for an authentic retro feel
  • Battery indicator — displays real-time power levels (requires soldering to positive terminal)

🔧 What's Included

  • 1x IPS MAX fully laminated screen module
  • 1x Dedicated driver board
  • 32/40 PIN FPC cable
  • Solder wire
  • 1x Custom shell (colour selected at checkout)

⚠️ Important Notes

  • Shell compatibility — this module requires the included custom shell. Not compatible with original GBA shells or third-party shells
  • Soldering required — basic soldering is needed for brightness controls. Battery indicator soldering is optional
  • Logo upload — USB-C cable and Windows-compatible software required for logo customization (included)
  • Recommended for modders with prior soldering experience

Condition

New

Questions about compatibility or installation? Send us a message before purchasing — we're happy to help.
